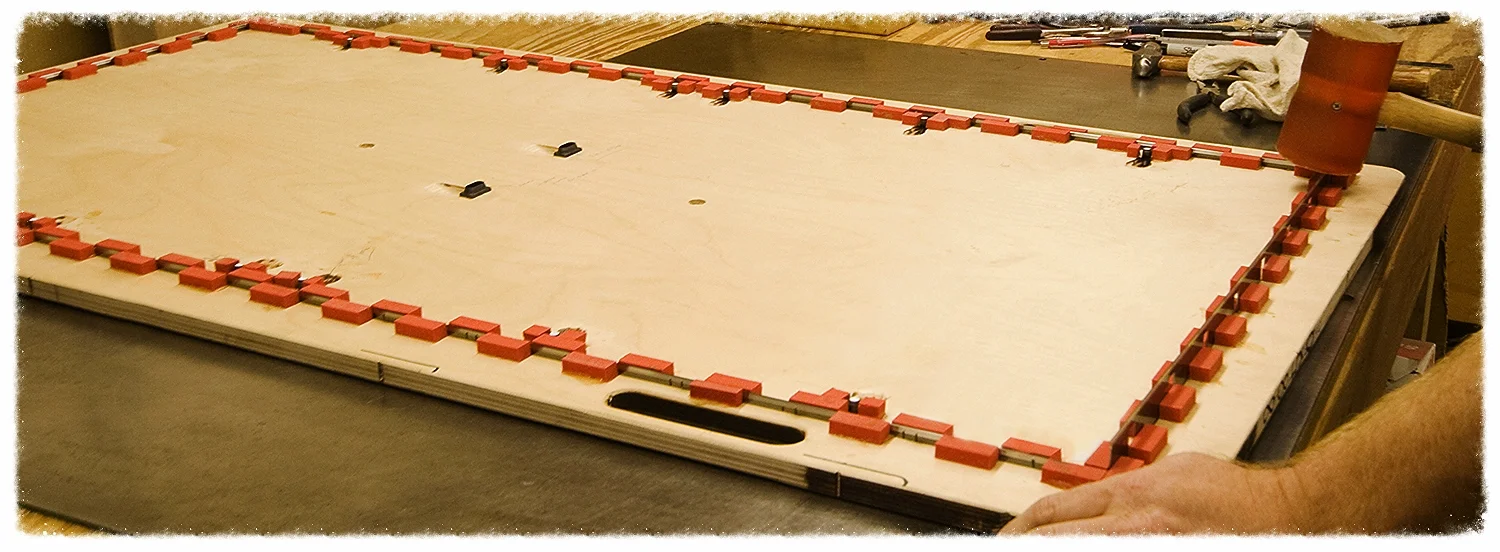

Standard die numbers

11 X 8 1/2 R.R. on spine

11 X 8 1/2 R.R. on spine

Capacity Die Number Size Spine Width PDF File
1/2" 10711 5/8 X 20 1/2 15/16" Click for PDF 107
3/4" 15111 5/8 X 20 1/2 1 1/16" Click on PDF 151
1" 11011 5/8 x 21 1/2 1 7/16" Click for PDF 110
1 1/4" 134 11 5/8 X 22 1/4 1 11/16" Click for PDF 134
1 1/2" 13711 5/8 X 23 2" Click for PDF 137
2" 16511 5/8 X 24 5/8 2 5/8" Click for PDF 165
2 1/2" 12611 5/8 x 26 3/8 3 1/8" Click for PDF 126
3" 170 11 5/8 X 27 1/4 3 1/2" Click for PDF 170
11 X 8 1/2 Angle D-Rings on Back Cover

11 X 8 1/2 Angle D-Rings on Back Cover

Capacity Die Number Size Spine Width PDF File
1" 205911 5/8 X 22 1 7/16" Click for PDF 2059
1 1/2" 43211 5/8 X 23 1/4 1 7/8" Click for PDF 432
2" 54011 5/8 x 25 5/8 2 5/8" Click for PDF 540
2 1/2" 589 11 5/8 X 26 5/8 3 1/8" Click for PDF 589
3" 215711 5/8 X 28 5/8 3 3/4" Click for PDF 2157
4" 941211 5/8 X 29 1/2 4 3/4" Click for PDF 9412
11 x 8 1/2 Straight D-Rings on Back Cover

11 x 8 1/2 Straight D-Rings on Back Cover

Capacity Die Number Size Spine Width PDF File
1" 684511 5/8 X 21 3/4 1 5/8" Click for PDF 6845
1 1/2" 246811 5/8 X 23 1/4 2 1/8" Click for PDF 2468
2" 54011 5/8 x 25 5/8 3" Click for PDF 540
2 1/2" 3743 11 5/8 X 26 1/2 3 3/4" Click for PDF 3743
3" 226211 5/8 X 28 3 7/8" Click for PDF 2262
8 1/2 X 5 1/2 R.R. on Spine

8 1/2 X 5 1/2 R.R. on Spine

Capacity Die Number Size Spine Width PDF File
1/2" 2419 1/8 X 14 1/2 5/16" Click for PDF 241
3/4" 2499 1/8 X 14 1/2 1 1/16" Click for PDF 249
1" 26809 1/8 x 15 1/2 1 7/16" Click for PDF 2680
1 1/2" 210 9 1/8 X 17 2" Click for PDF 210
2" 2089 1/8 X 18 5/8 2 5/8" Click for PDF 208
8 1/2 X 5/12 Angle D-Rings on Back Cover

8 1/2 X 5/12 Angle D-Rings on Back Cover

Capacity Die Number Size Spine Width PDF File
1" 2009 1/8 X 15 1/2 1 7/16" Click for PDF 200
1 1/2" 2179 1/8 X 17 1/2 2" Click for PDF 217
2" 25339 1/8 x 19 1/8 2 5/8" Click for PDF 2533

Tuck Tab Boxes

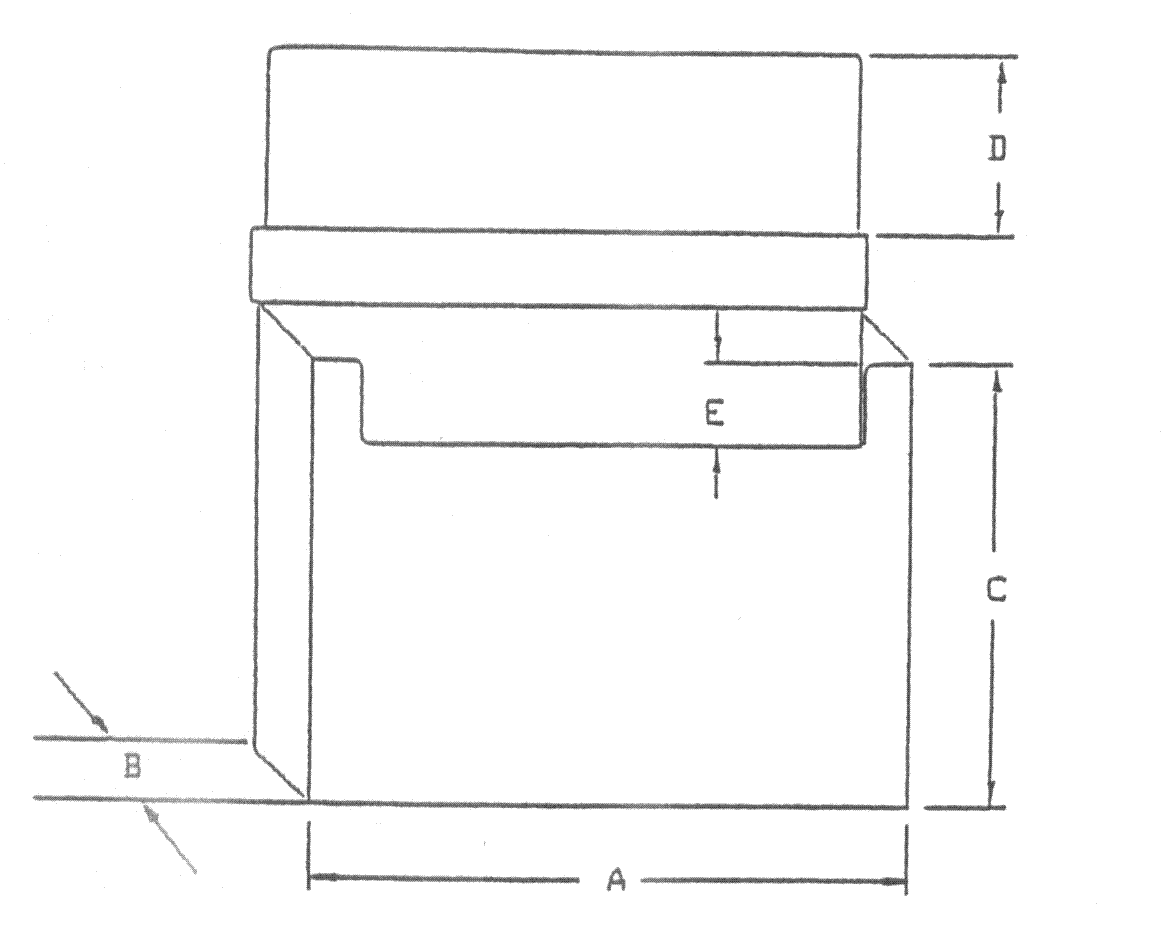

Die Number "A" Width "B" Capacity "C" Height "D" Flap "E" Cut-out PDF File
4320 11 3/4"1" 9 9/16" 7 5/8" 4 3/8" Click for PDF 4320
9779 11 1/2"1 5/8" 9 1/4" 5" 1 7/8" Click for PDF 9779
9553 11 3/4"1 3/4" 10 5/8" 5" 2 1/2" Click for PDF 9553
3397 12 5/16" 1 15/16" 10" 4" 2 1/2" Click for PDF 3397
4292 12 3/16"2 9/16" 10" 5" 2 1/2" Click for PDF 4292
9028 12 3/8"3 9/16" 10" 4" 2 1/2" Click for PDF 9028
7463 12 1/4"4 1/4" 9 3/4" 5" 3 3/4" Click for PDF 7463

Sonic Welded Boxes

Die Number "A" Width "B" Capacity "C" Height "D" Flap "E" Cut-out PDF File
7388 12 1/2"1/2" 9 1/2" 5 1/2" 1 1/2" Click for PDF 7388
3942 12"1" 9" 3" 2" Click for PDF 3942
4936 11 3/4"1 1/2" 9 1/4" 3 9/16" 2" Click for PDF 4936
4979 11 3/4" 1 3/4" 9 1/2" 1" 1" Click for PDF 4979
5789 17 3/4"1 3/4" 11 3/4" 5" 2 1/2" Click for PDF 5789
5504 12"2" 10" 7" 0" Click for PDF 5504
5896 11 3/4"2 1/2" 9 5/8" 9 5/8" 2 1/2" Click for PDF 5896
5535 12 1/2" 2 1/2" 10" 5" 3" Click for PDF 5535
5077 11 3/4"3" 10 1/4" 2 1/2" 1" Click for PDF 5077
4170 12 1/4"3 1/2" 10" 4" 2" Click for PDF 4170
5631 12 3/4"3 1/2" 12" 4" 2 1/2" Click for PDF 5631

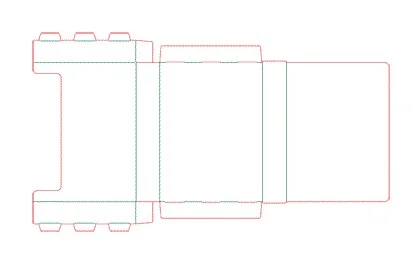

Tab Layout - Click for PDF
